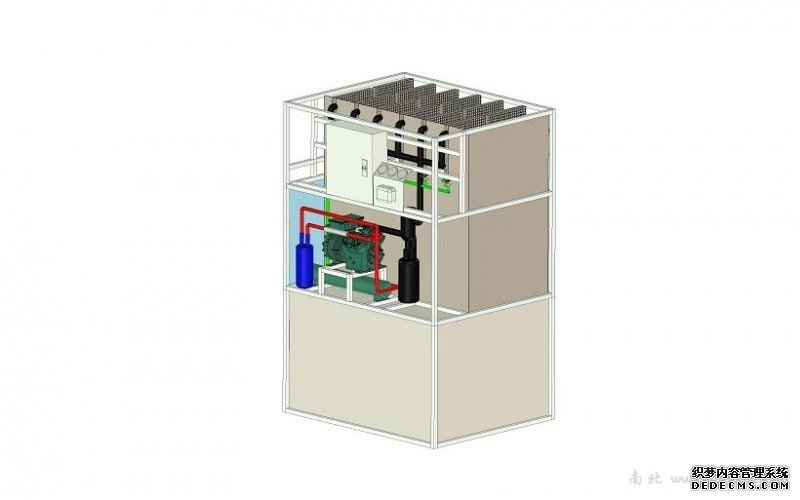

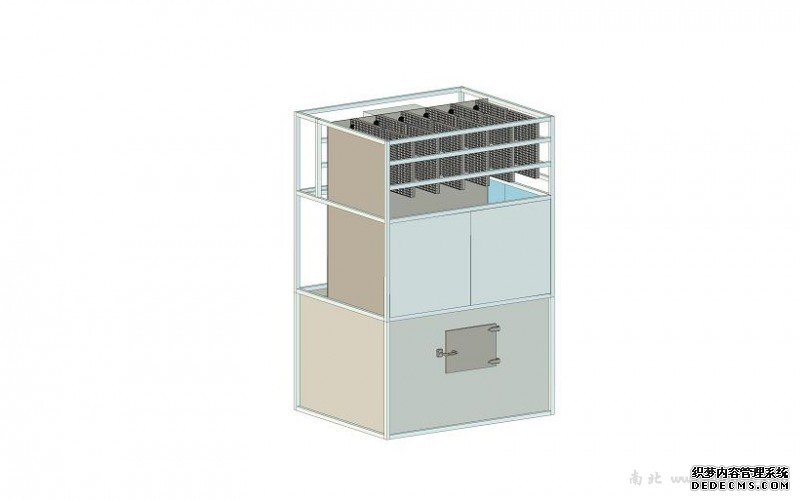

2噸/天 食用顆粒制冰機

序號NO.

參數名Parameters

數值Technical data

1

型號Model

NB2T-R2W

2

蒸發溫度Evaporating temp.

-10℃

3

冷凝溫度Condenser temp

+40℃

4

控制系統Control system

PLC micro-computer control

5

電源形式Voltage

220V/3Phase/60Hz

6

方冰密度cube ice weight density

500~550kg/m3

7

耗電量Power consumption

80KW~85KW/ton

8

尺寸Measurement

方冰機

Cube ice machine

Machine:1750mm x 1510mm x 2040mm

方冰

Cube ice

22mm x 22mm x 22mm 冰塊尺寸

or 29mm x 29mm x 22mm

9

運行聲噪Noise

55dB

10

制冷劑Refrigerant

R22

11

蒸發溫度Evaporating temp.

-15℃

12

冷凝溫度Condenser temp

+40℃

13

額定進水溫度Input water temp.

28℃

14

額定環境溫度Ambient temp.

40℃

15

壓縮機

Compressor

類別Model

富士豪半封閉壓

Brand name

富士豪

數量Amount

1

型號Type

Q7-33.1

制冷量Power

16.78KW

16

減速電機

0.75KW

17

冷卻風扇總功率

Total Power of cooling fan

0.55KW

18

冷卻水泵

2.2KW

19

冷凍水循環泵功率

Power of circulating water pump

0.75KW

20

蒸發器Evaporator

型號Type

cube type

數量Quantity

8 pieces
